The CB climbing system provides safe working conditions with wall formwork at all heights.

CB Climbing Formwork

Crane-movable climbing units with platform bracket for large-sized wall formwork

CB Climbing Formwork is the ideal system for supporting large-sized, anchored wall formwork. The climbing unit consists of formwork, a working platform, brackets with formwork carriage and strongbacks, and a finishing platform. It can be moved very quickly by crane to provide a reliable, efficient and intuitive solution for core and other structures.

CB Climbing Formwork in action

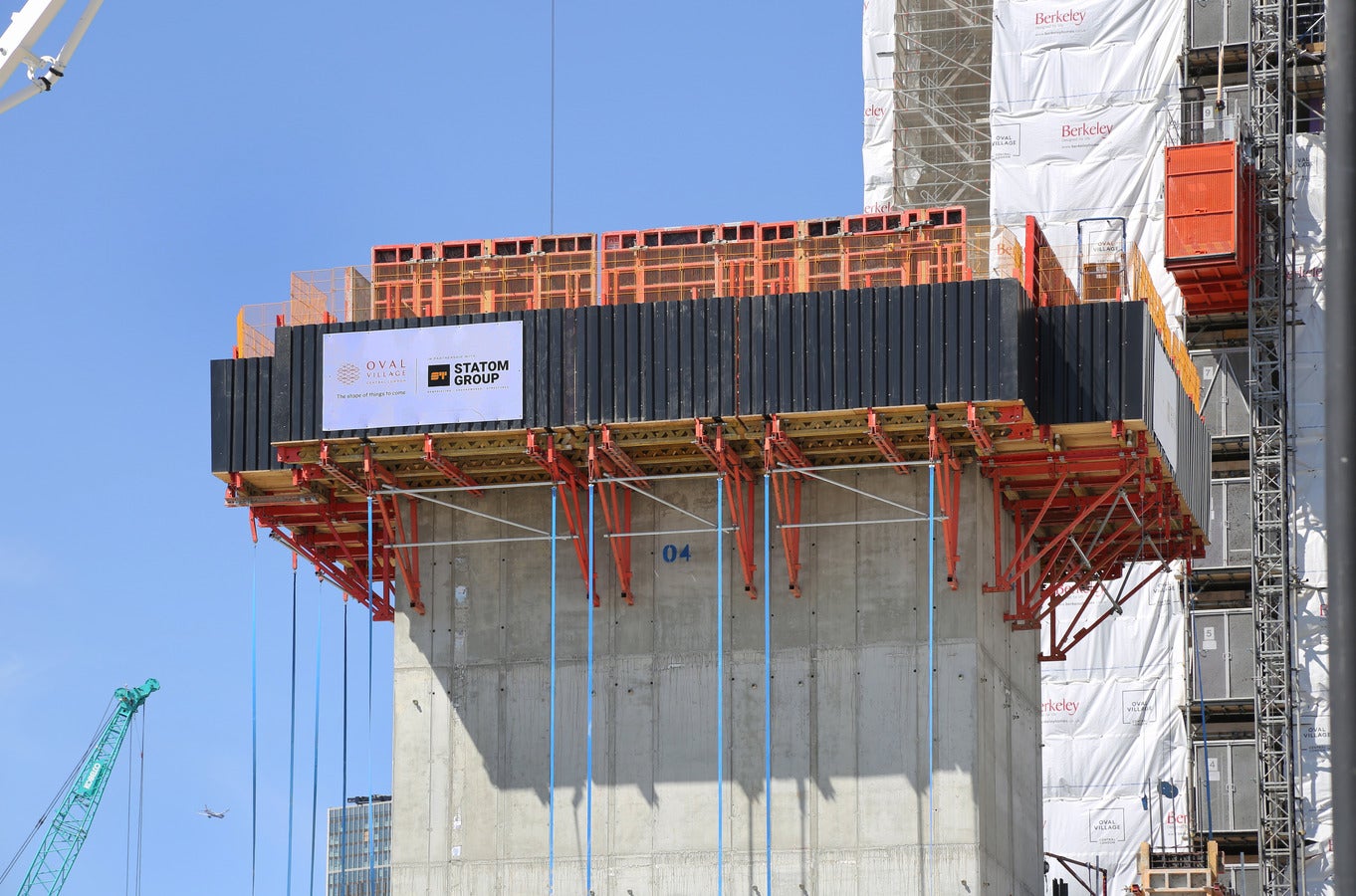

  • Large scaffold units of the securely assembled units consisting of platform and formwork in only one crane lift.
    A robust system

    Providing high-load capacity and generous working space



    Project: Oval Village

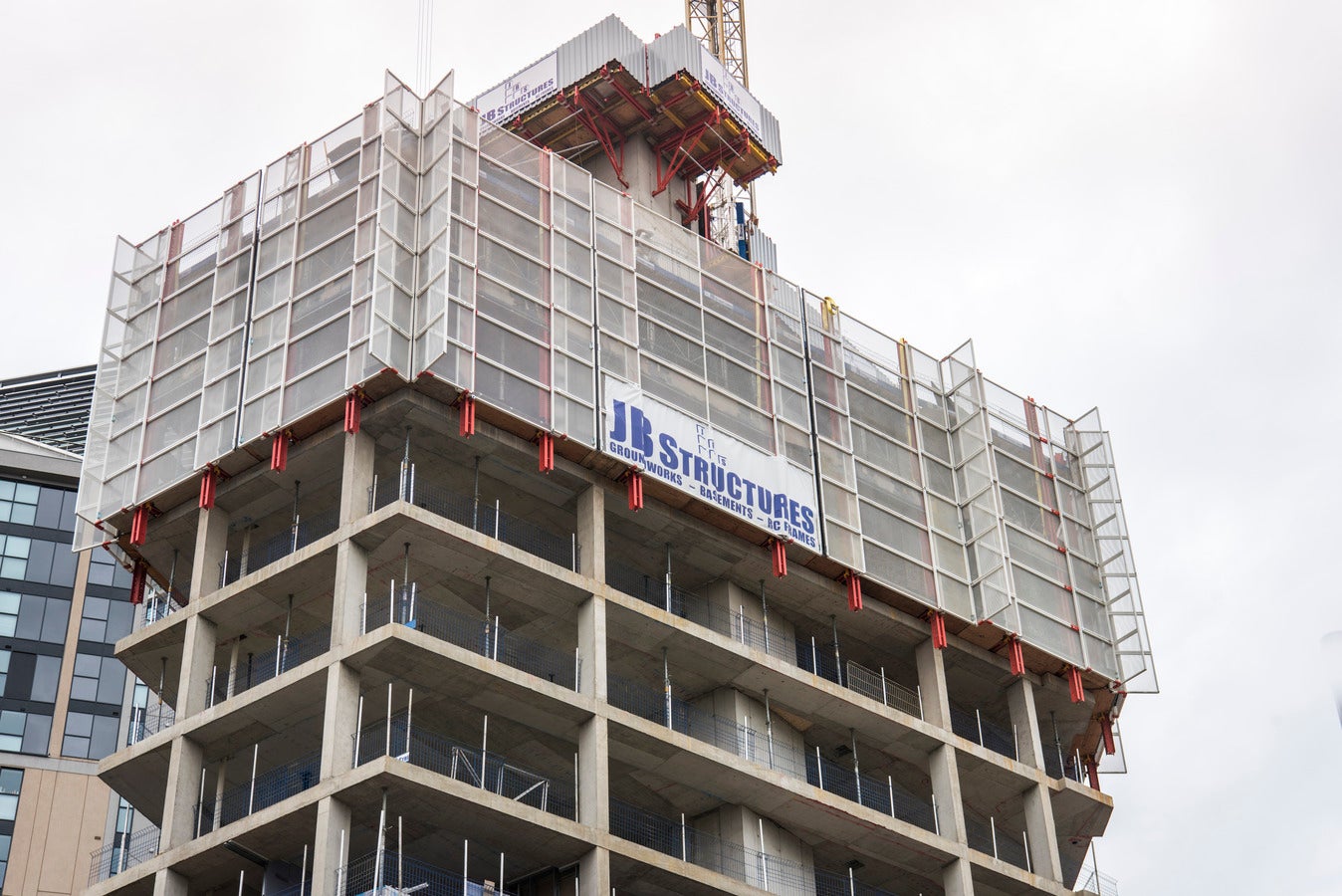

  • Time-saving moving procedure of the securely assembled units consisting of platform and formwork in only one crane lift
    Save crane time and stay on programme

    Robust units with minimal components allow the platform and formwork to be elevated in only one crane lift



    Project: Newington 87 Causeway

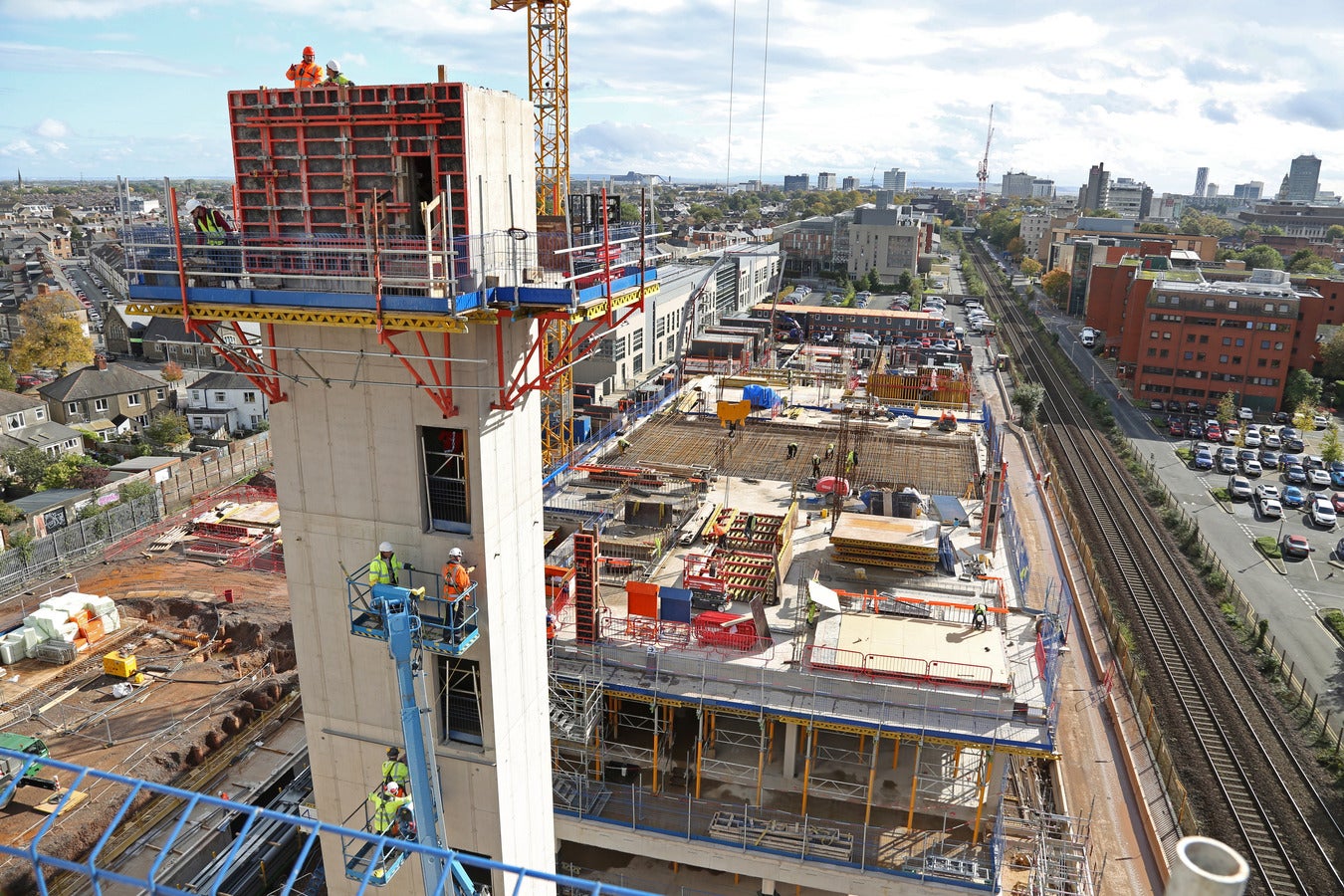

  • Free of tripping hazards in front of and behind the formwork as the platform lining is placed over the brackets (valid for CB 240)
    A safe and hazard-free working environment at height

    Working in and around the formwork system is safe thanks to the spacious platforms and open and clear working deck



    Project: Cardiff University

附加資訊

Variations

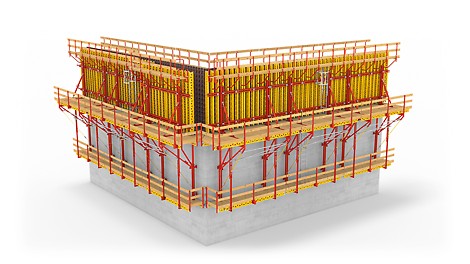

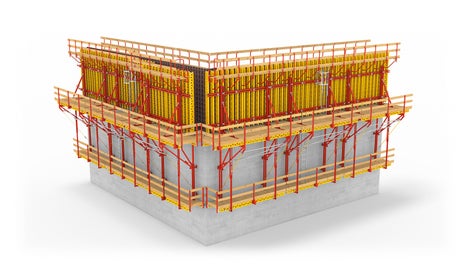

CB 240 Climbing Formwork bracket width 2.40m with carriage (75cm retraction distance), strongback and an adjustable brace

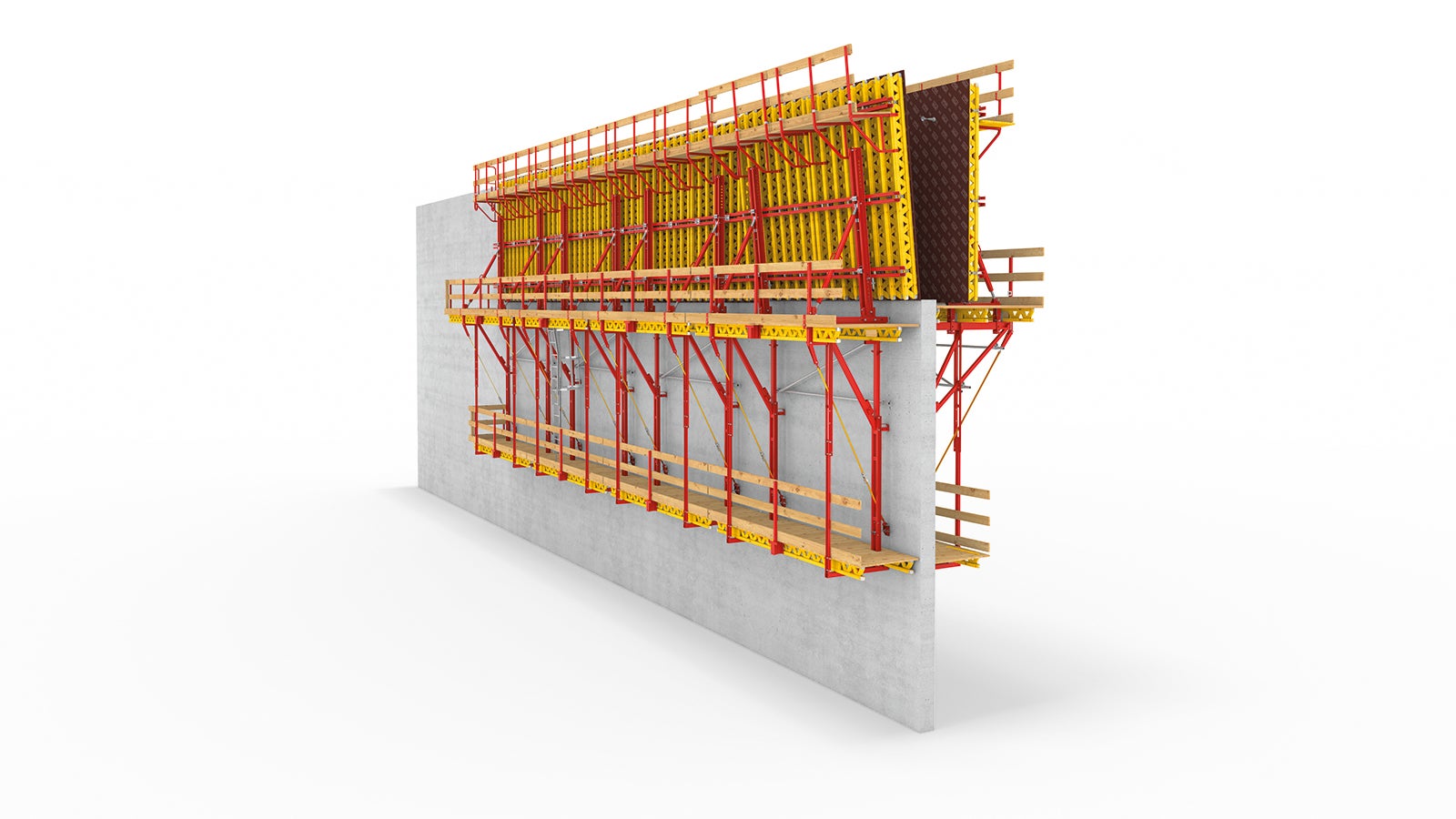

CB 160 Climbing Formwork bracket width 1.60m with adjusting unit, strongback and adjustable brace
