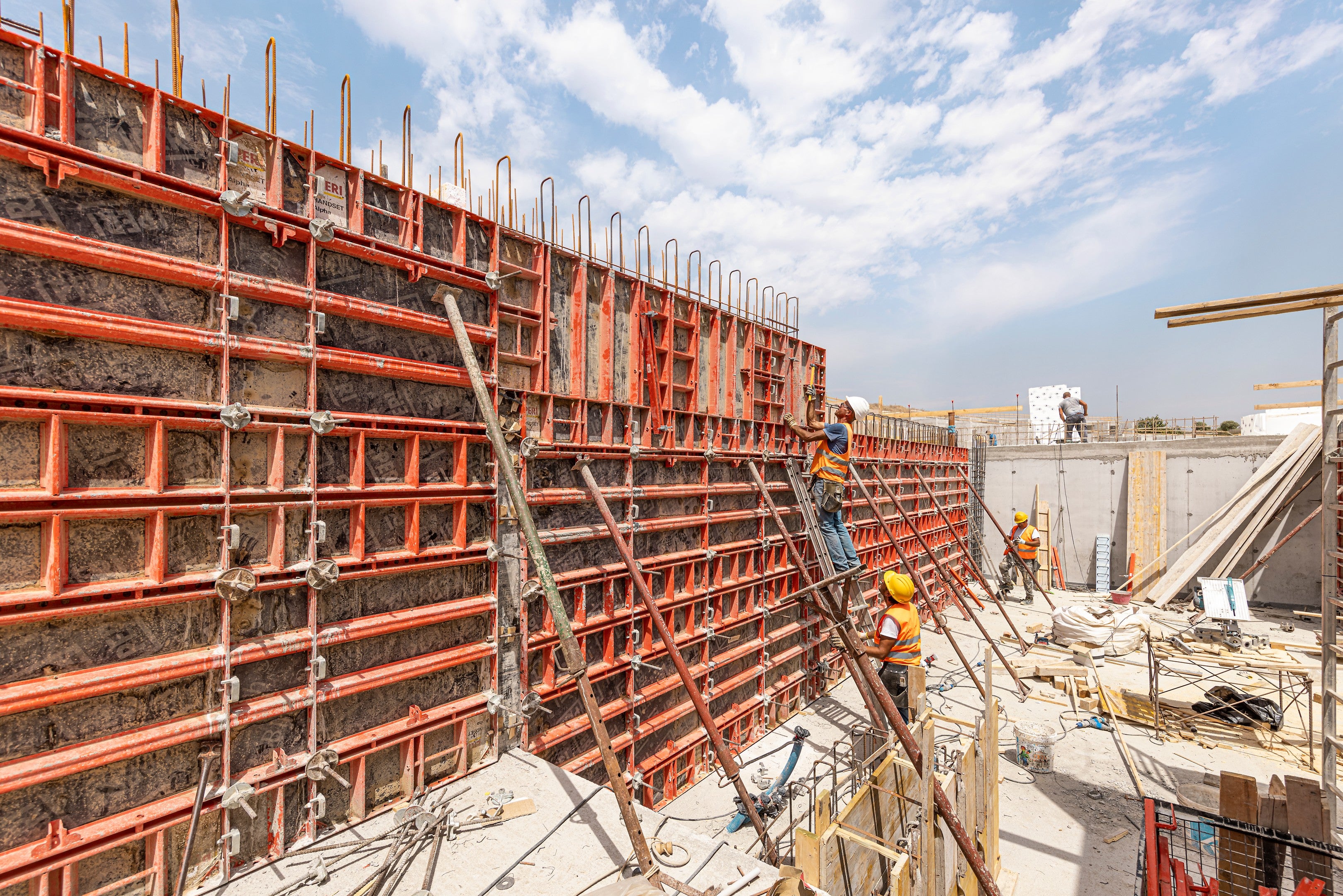

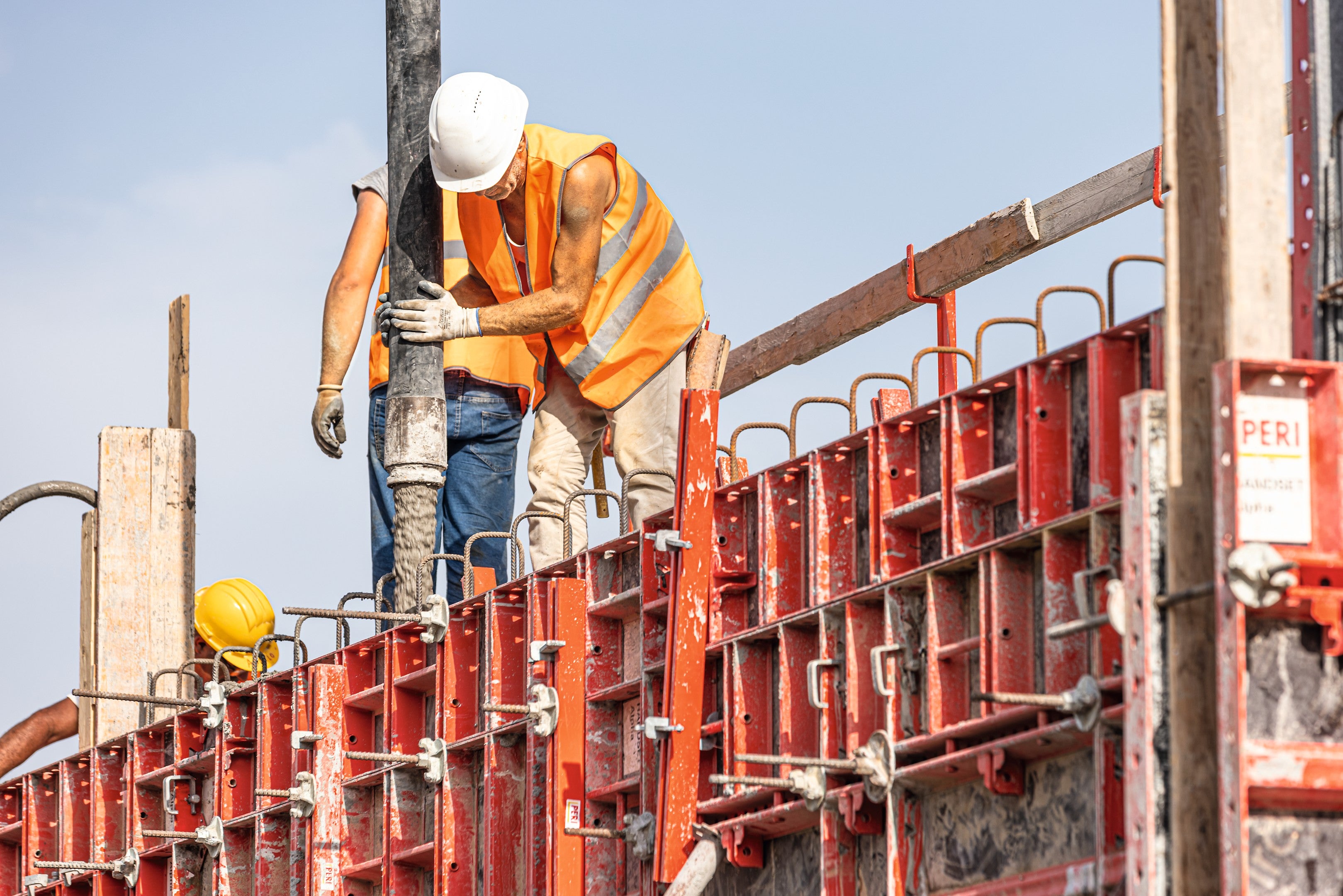

HANDSET Alpha in action
-
Few components, mostly multi-functional, makes this intuitive system quick and simple to train out and use on site. An additional benefit is reduced timber usage on site, and lost materials over the course of the project
-
Assembly is carried out quickly and intuitively by just two people - without the need for a crane. This makes HANDSET Alpha very efficient.
Product data sheet
系統類型
Robust panels with a weight of 34 kg/m²
區域/支援
All of the panels can be used as multi-panels
新拌混凝土壓力
Max. permissible fresh concrete pressure: 60 kN/m² (for walls), Max. permissible fresh concrete pressure: 60 kN/m² (for columns up to 900mm x 900mm), Max. permissible fresh concrete pressure: 75 kN/m² (for columns up to 600mm x 600mm)
材料
Steel and powder-coated panels
達標
Basically for all applications: flatness according to DIN 18202, table 3, line 6
技術要求
no crane required
其他
Easy cleaning due to inclined profiles in combination with high-quality powder-coated frames.
Interested in using HANDSET Alpha for your project?
我們將為您量身定制最合適的解決方案以滿足您的特定要求。
