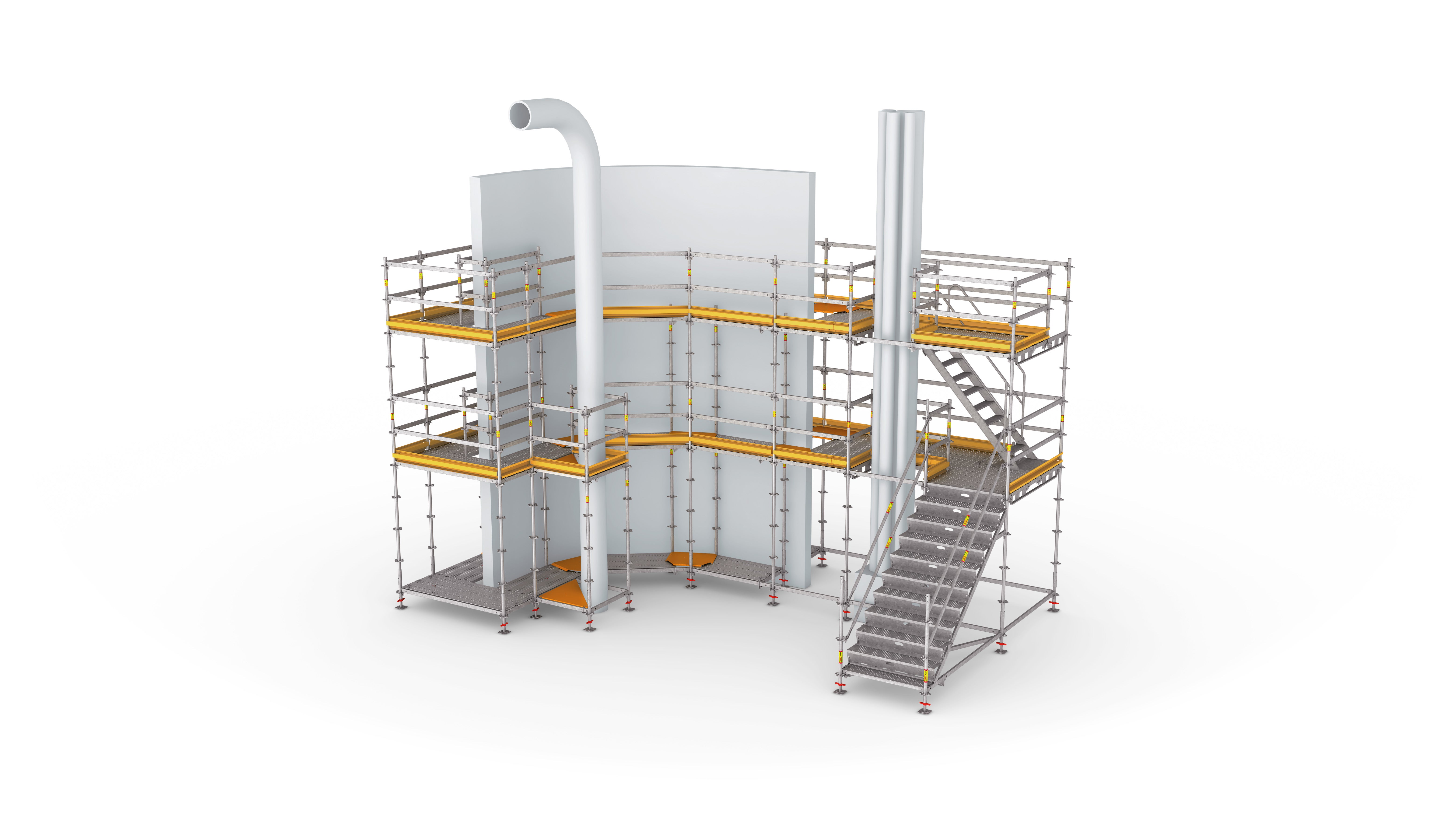

PERI UP Flex Modular Working Scaffold: Extremely flexible work scaffold for a wide range of applications.

PERI UP Flex Modular Scaffolding

Flexible. Safe. Fast

The highly flexible scaffold system PERI UP Flex leaves almost no request unfulfilled.  At the heart of the system is a labour-saving and time-reducing approach with minimal parts, and simple connections to deliver fast erection and dismantling times.  At every stage, safety is built in to the system, such as gravity-locking ledgers, anti-uplift decks, advanced guardrails (on PERI UP Easy), gap-free decks, integrated toeboards and the highest quality materials and manufacturing to ensure performance year after year.

This flexibility of the system enables almost any adjustments required to suit the local site conditions and geometry of the structure being constructed or access required.

PERI UP Flex has a grid system of 25cm and 50cm. The wide range of ledgers and decks with different lengths starting from 25cm allows the decking to change direction during installation and therefore ensure maximum adaptability to suit project-specific geometries.

PERI UP Flex meets the requirements of the European standards EN 12810 and EN 12811.



PERI UP Flex in action

  • Highly Flexible PERI UP Flex Scaffold System
    PERI UP Flex offers unmatched adaptability for site conditions, ensuring top safety standards and customizable configurations with a versatile grid system and various ledger lengths.
  • PERI UP Flex Modular Working Scaffold: The UDG industrial decking has been designed for high loads: in lengths of up to 200 cm, the permissible load is 10,0 kN/m². With longer lengths, 7.5 kN/m² or 5.0 kN/m² respectively can be carried.
    Always safe working conditions

    Working platforms are completely covered without any gaps in the deck.  Accommodation of any obstructions or direciton changes are easily made with the highly flexible deck arrangements.

    Ledgers lock in place to provide working at height reassurance, whilst the perforated non-slip deck provides confidence underfoot.

    Most importantly, the quality and consistency of our manufacturing process ensures PERI UP performs year after year in even the toughest of site conditions

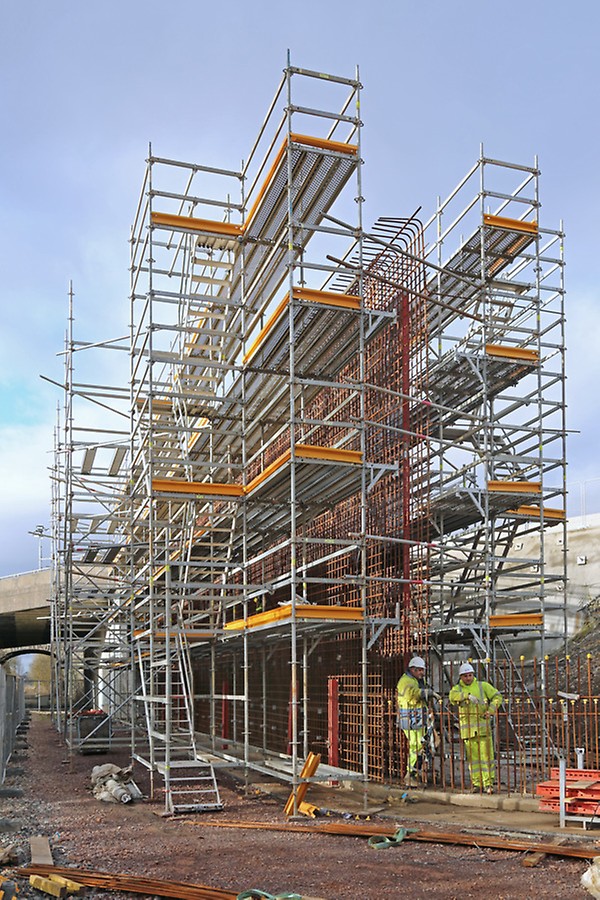

    Project: Payne Road

  • PERI UP Flex Modular Working Scaffold: Maximum adaptability, high level of safety and fast assembly - all this makes PERI UP Flex the ideal system for use in industry.
    High load-bearing capacity

    The rigidity of the PERI UP connection node provides stability and high load-bearing capacity

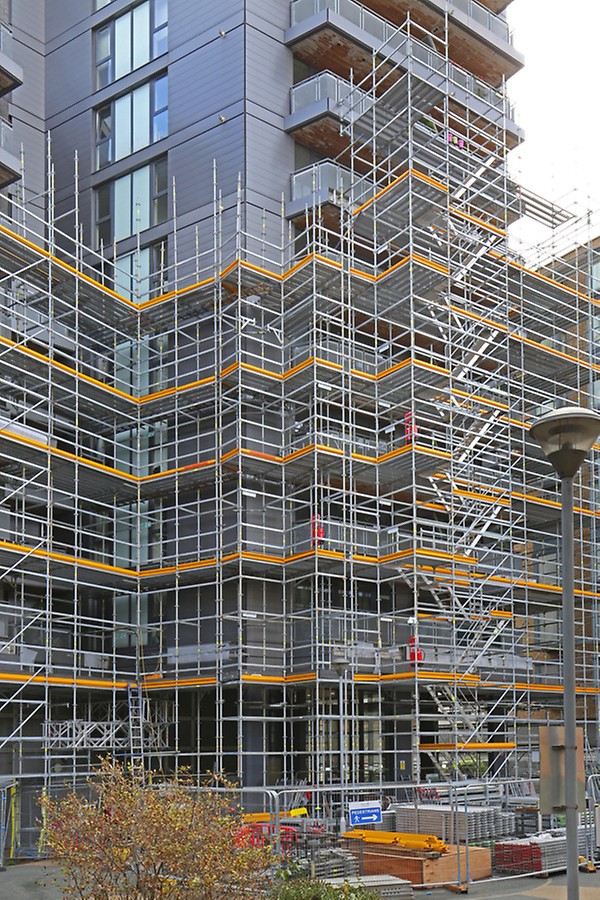

    Project: Heads of the Valley

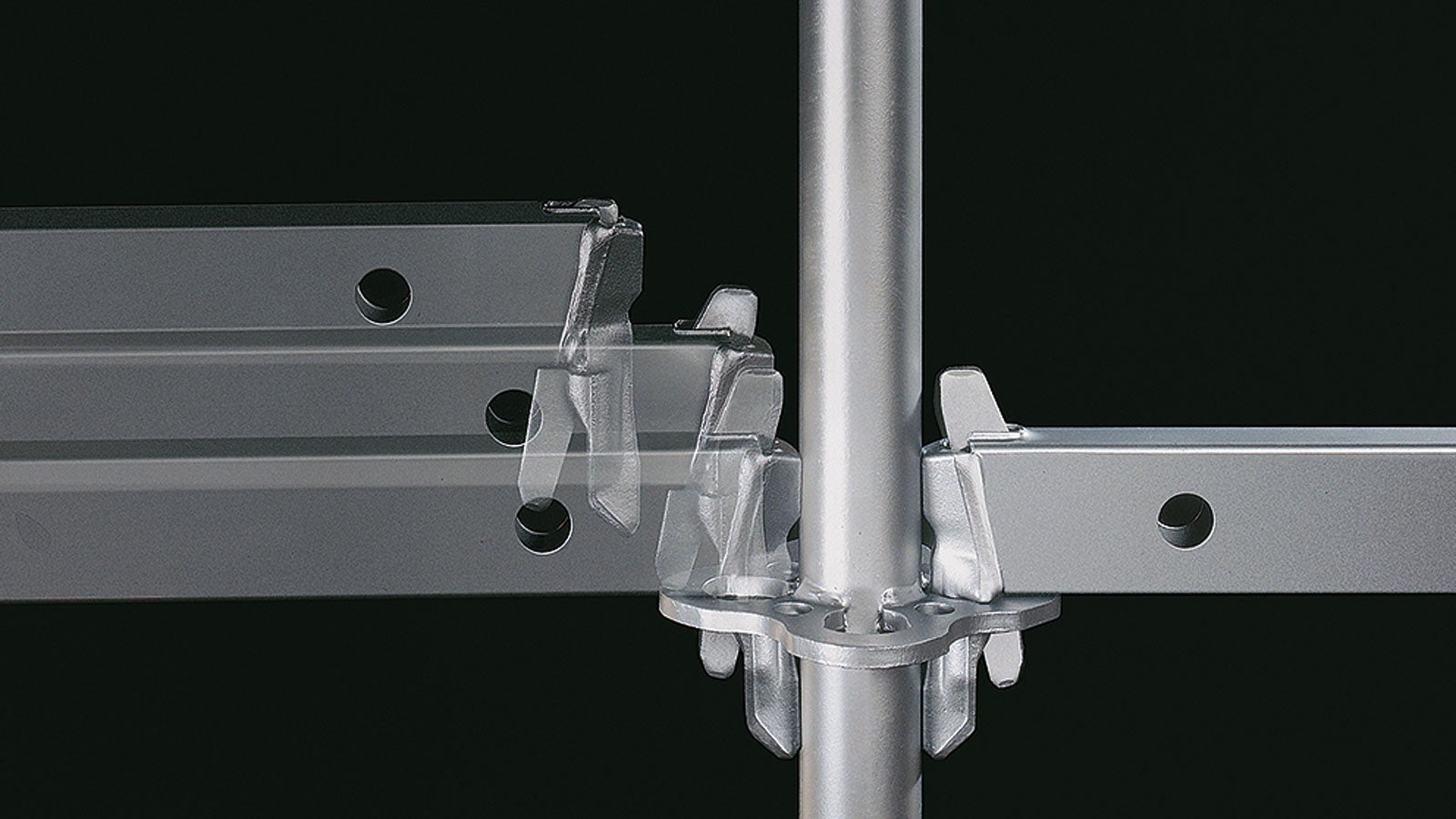

  • The gravity lock facilitates fast assembly of the modular scaffolding.
    Easy to install

    Quickly and safely mounted with the “gravity lock” and self-locking decks.

    The gravity lock facilitates fast assembly of the modular scaffolding: by inserting the wedge head into the rosette, the wedge drops by force of gravity into the hole and then locks.

Product Data Sheet
