High load-bearing
With permissible load up to 100 kN per leg
-
Highly versatile
Almost unlimited adjustment possibilities regarding height, width and length
-
Simple setting out
and high-load extensions on Heavy Duty Spindles
-
Compatible
Can work with other PERI systems for access and safety requirement
PS 100 in action
-

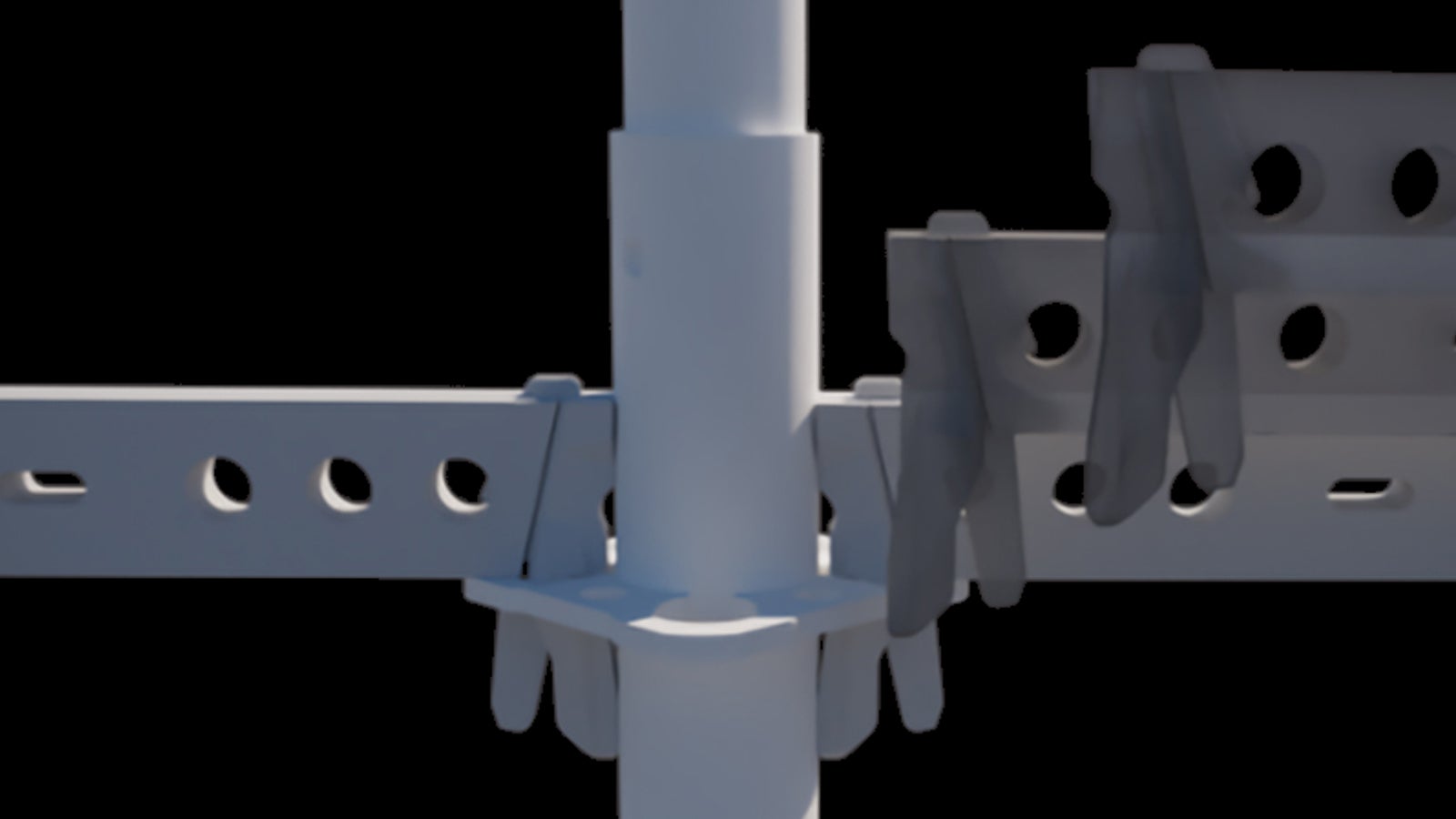

![The gravity lock facilitates fast assembly of the modular scaffolding: by inserting the wedge head into the PS100 Rosette Connector, the wedge drops by force of gravity into the hole and then locks.]( "PS100 Rosette Connector")
PS 100 Rosette ConnectorThe gravity lock facilitates fast assembly of the modular scaffolding: by inserting the wedge head into the PS 100 Rosette Connector, the wedge drops by force of gravity into the hole and then locks.
-

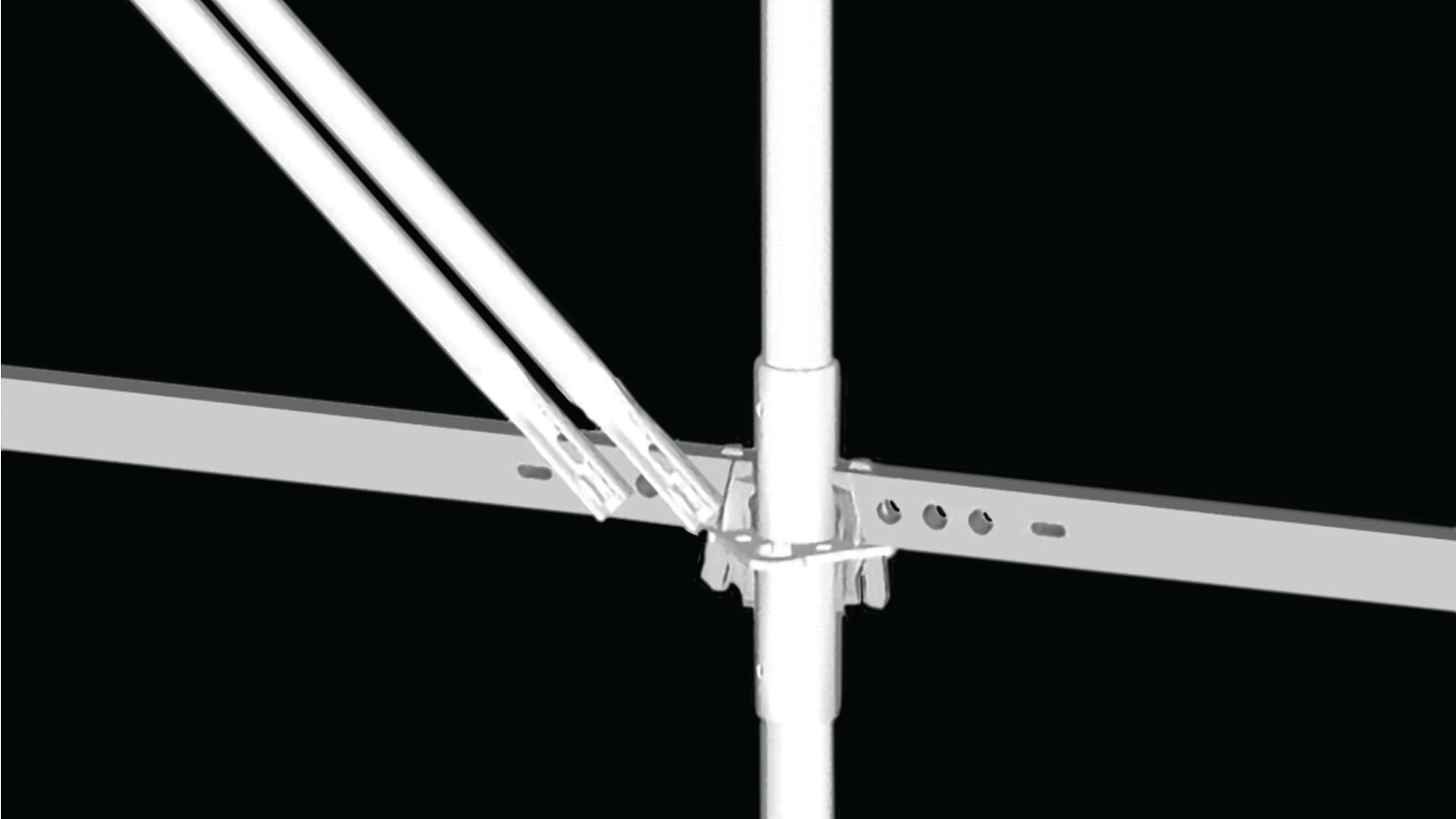

![Allows multiple braces for high-load conditions.]( "PS100 Diagonal System")
PS100 Diagonal SystemAllows multiple braces for high-load conditions.
-

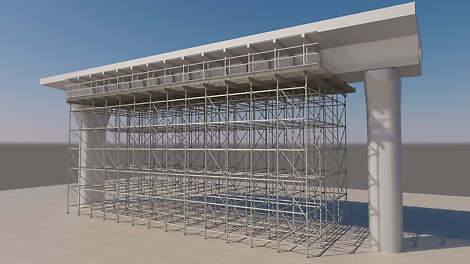

![PS100 Shoring System is ideal for deep slabs and bridge deck construction with permissible load up to 100kN per leg.]( "PS100 Shoring System")
PS 100 Shoring SystemPS 100 Shoring System is ideal for deep slabs and bridge deck construction with permissible load up to 100 kN per leg.
-
PS 100 System for Modern Construction NeedsThe unique features of PS 100 offer unparalleled safety, strength-to-weight ratio, and assembly speed.
Product Data Sheet
Installation
Additional holes in ledgers allow the installation of double parallel braces for high vertical and/or horizontal loads
Contact point
Wide contact point of the ledger optimize the load nearing capacity with a "knee-brace" type connection
Compatibility
Heavy Duty Spindle is compatible as both top and bottom spindle with permissible extension up to 750mm
Dimensions
Ground plan is available in dimension of 50cm up to 2.5m in 50cm increments
Interested in using PS 100 Shoring System for your project?
Call us at +852 3102 7900 or email us to discuss your requirements further.
