SB Brace Frame in action
-

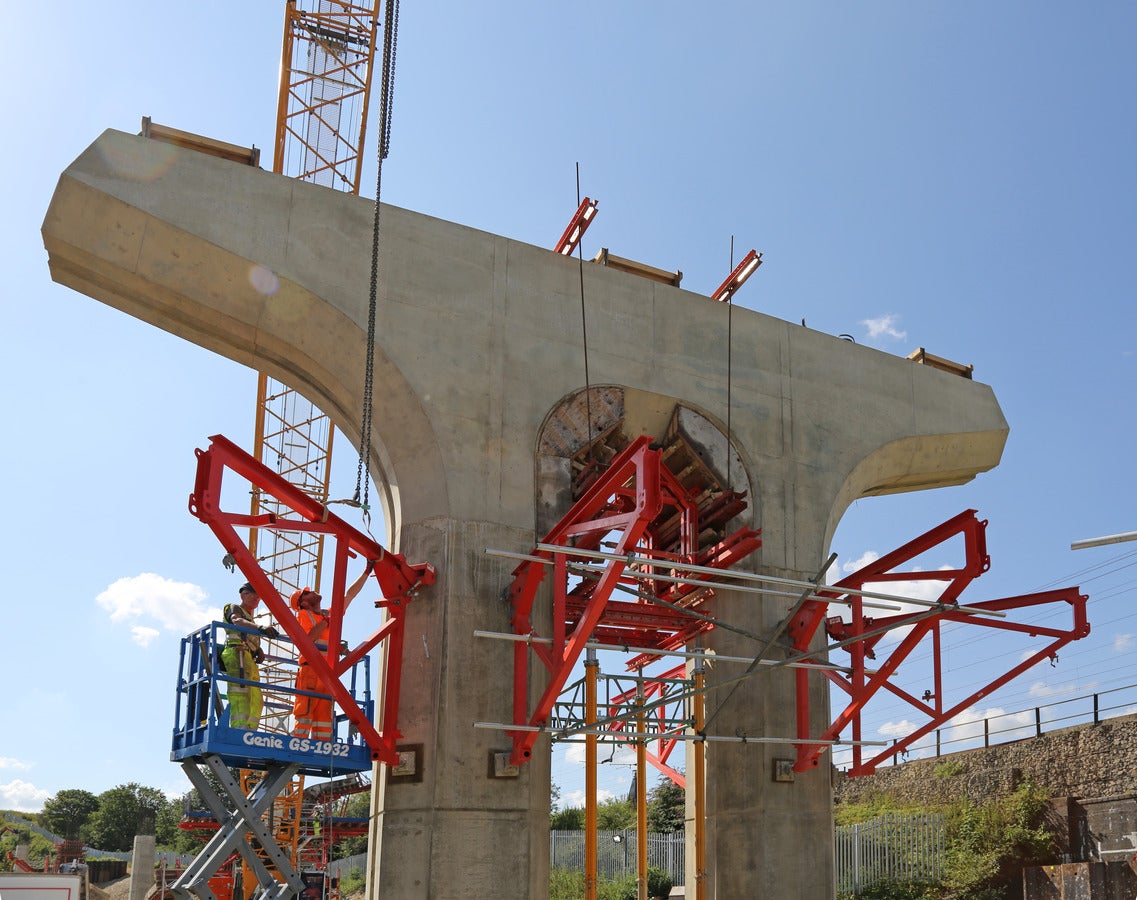

![Very versatile use with all PERI wall formwork as well as horizontal heavy-duty brackets.]( "Luton DART Rail Link")
Highly versatile systemIntegrates with PERI wall formwork systems as well as horizontal heavy-duty brackets for complex infrastructure and building projects.
Project: Luton DART Rail Link
-

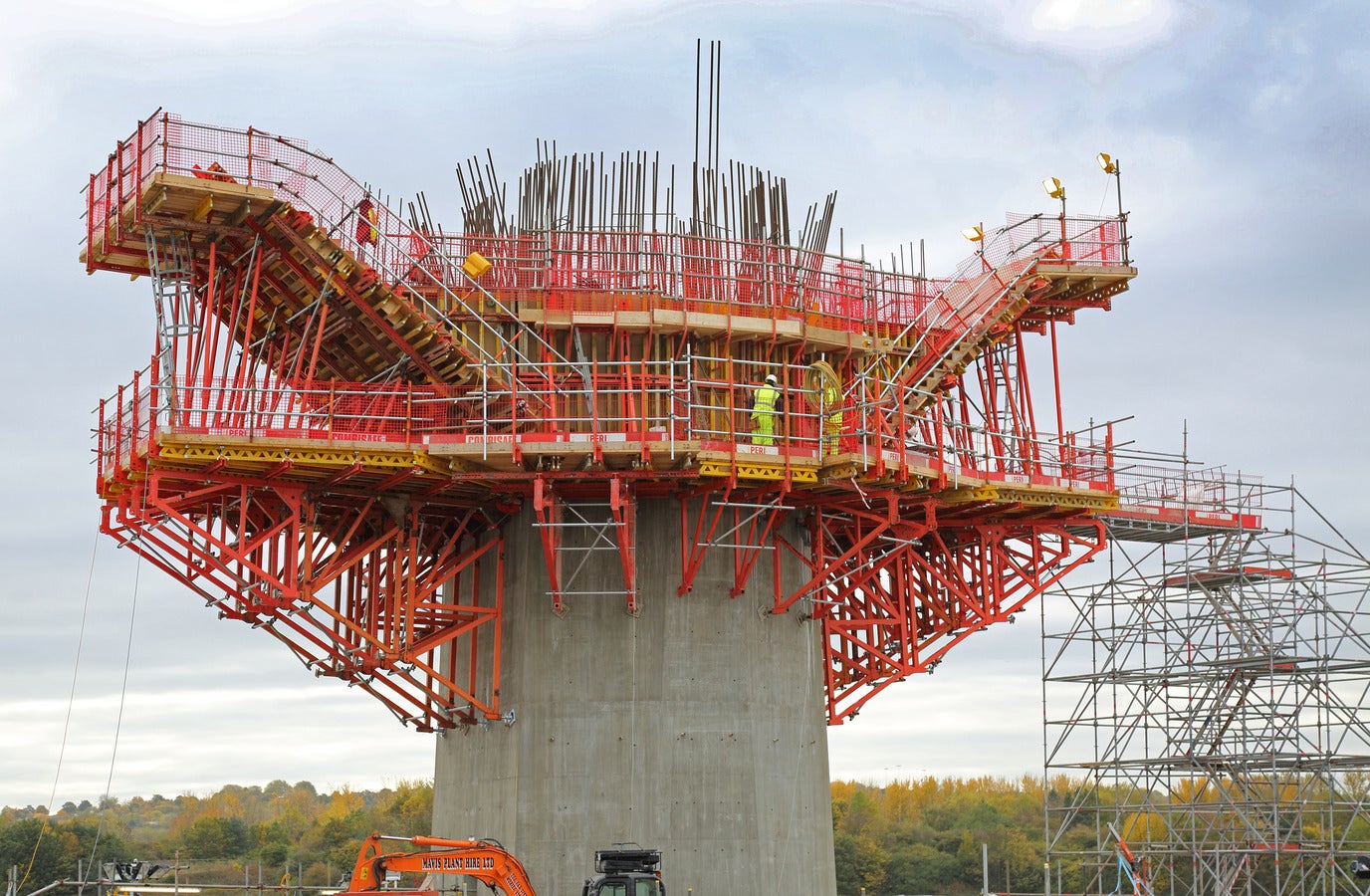

![as all required connection parts are already mounted on the Brace Frame.]( "Quickly connected without additional components")
Rapid connections with minimum componentsConnecting parts are already mounted on the Brace Frame to ensure fast and smooth assembly and dismantling operations on site.
Project: Mersey Gateway
-

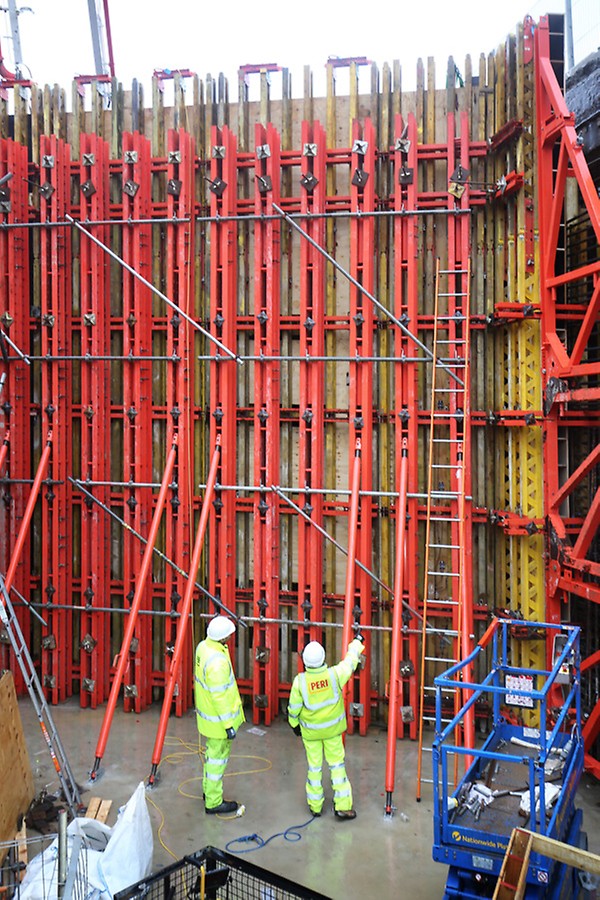

![Easy to transport through matching the individual component geometries to suit truck and container dimensions.]( "Regent Street Flyover")
Easy transportationEach individual component can be configured to suit truck and container dimensions.
Project: Regent Street Flyover
Product Data Sheet
System type
Support Frame
Fresh concrete pressure
Can be used up to 60 kN/m²
Load
Tensile and compressive force: DW 15 anchor system: 180 kN, DW 20 anchor system: 300 kN, DW 26 anchor system: 500 kN
Other
With the PERI V-tie holder and the advance coupler, the tie rod can be installed precisely at an angle of 45°. This means safe load transfer and thus maximum stability for the support frame and formwork.
Interested in using SB Brace Frames for your project?
We will tailor the most optimal solution to meet your specific requirements.
